6525

Commercial Wood Chipper

Featuring a powerful, commercial-grade 747cc 25HP engine with heavy-duty air filtration.



Will process up to 6.5" (165mm) true feed capacity with exceptional self-feeding capability.



Highway towable with 2" ball receiver and 1,000-lb trailer-assist jack with caster wheel.



Torsion axle suspension for a smooth ride and big wide tires that give enormous on-road and off-road potential. Highway towable. DOT approved.



Transmission commercial-grade clutch for an easy start and better engine shock load protection.



MRP $9,899.99


| FEATURES |


PLENTY OF HORSES

When you are working tirelessly for 10 or more hours a day, you want to hold your equipment to the same standards. That's why we chose to power our chipper with the Kohler CH742.  A tru beast itself, the CH742 comes prepared for action with improved oil cooling system, and a heavy duty air filtration system.  This engine is also certified according to the latest EPA/CARB and EURO emissions standards.

BIG CUTS

Our specialty honed A8 steel blades take charge in cutting every branch like butter. The 6525 is capable of doing up to 4,600 cuts per minute. The rotor is fabricated from 3/4" thick steel with a carefully machined blade attack angle for great self-feeding .


HINGED

The feed chute pivots so you can reduce space while storing, change anvil, or make closeup inspection for blade-anvil clearance.


WIDE CHUTE

Chipper with wide chutes defines us because branches simply aren't born straight. The 6525 opening dimensions are 19" wide x 22" tall.


WOOD CHIPPER

Chute Opening: 24" x 24"
Blades: Two reversible A8 steel blades
Rotor: 25" diameter x 3/4" thick
Feeding: Gravity Self Feeding
Discharge: 10-position gooseneck discharge
Chipper frame: Articulated frame for a quick inspection. 3/16" thick steel frame.

ACCESSORIES

Engine:      Kohler CH742 | 25HP 740cc
Air Cleaner: Heavy Duty Air Filtration System
Low Oil Sensing System: Yes
Torque: 41.2 ft-lbs
Transmission: Commercial Centrifugal Clutch
DOT approved trailer for Highway.

5-Gallon EPA/CARB Fuel Tank.

QUICK SPECS

SMOOTH RIDE

The 6525 is highway towable thanks to its DOT compliant torsion suspension.  Big wide 206/65-10 tires make sure the ride is smooth both on and off road.

BIG TANK

Heavy Duty Fuel tank that holds up to 5 Gallons of fuel for making the most between refuelings. The tank comes standard with a CARB compliant gas carbon filter.


ROBUST

TRANSMISSION

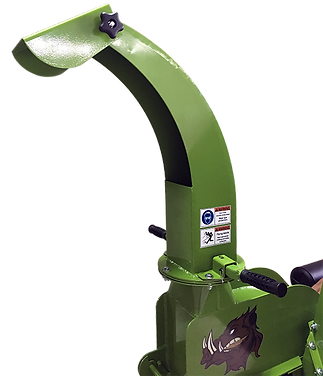

10-POSITION ROTATIONAL DISCHARGE

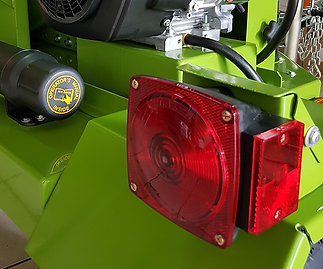

DOT APPROVED LIGHTNING

| DOWNLOADS|

CRATE

DIMENSIONS

&

WEIGHT

     P1    |  P2

L:   74"           34"

W: 50"         32"

H:  45"          37"

950 LBS      120LBS

SIDE DIMENSIONS

6525 S-dimension.jpg

Dimensions are in inches.

BACK DIMENSIONS

6525 F-dimension.jpg

Dimensions are in inches.
